Arccaptain ARC250 250A 230V Professional Stick Welder
250A rated output on a standard 230V single-phase circuit. Runs E6011 cellulosic rods. Welds sheet metal through structural plate. Built for pipeline work, overhead joints, automotive repair, and any job site without three-phase power.
Delivers 250 amps of rated output on single-phase 230V circuits found in standard workshops, garages, and light industrial bays. No three-phase service required.
Built for pipeline work, outdoor repair, and welding on rusty, painted, or coated steel. Runs on AC, digs deep, handles surface contamination — open-root pipe passes and vertical-up joints, every time.
60% duty cycle at full 250A output — six minutes of arc time per ten-minute window at maximum power. Built for jobs where downtime costs money.
From 1/16" (2mm) sheet metal to 5/8" (16mm) structural plate. One machine covers every job on site.
250A output and all-position E6011 support handle overhead joints, beam connections, and column base plates where other machines lose arc stability.
Purpose-built for E6011 cellulosic rods on AC — deep penetration and fast-freeze arc control that pipeline welding demands in every position.
Welds auto body sheet metal and frame sections at the low end of the 2–16mm range without burning through. Low-spatter E6013 keeps finish quality high.
60% duty cycle and IGBT stability deliver consistent results across long sessions on standard 230V single-phase plant power.
Soft-arc E6013 at lower current handles gates, railings, and architectural metalwork where bead appearance matters as much as joint strength.
Full 2–16mm capacity, E6010/11/13/7018 compatibility, and 60% production duty cycle — one machine for everything that comes through the door.
230V single-phase on standard US site power. Structural steel up to 5/8" — no three-phase service required.
Stick welding outperforms MIG and TIG in wind and humidity. E6011/E6010 rod support for real outdoor conditions, not just clean-bench environments.
Tested and optimized for the four most common electrodes used by American fabricators, pipefitters, and maintenance welders.
| Rod | Best For | Arc Character | Position | Support |
|---|---|---|---|---|
| E6010 | Pipe, structural, dirty/rusty steel | Deep penetrating, fast-freeze | All positions | Optimized |
| E6011 | AC or DC, outdoor, coated steel | Moderate penetration, flexible | All positions | Optimized |
| E6013 | Sheet metal, light fab, beginners | Soft arc, easy slag removal | Flat, horizontal | Optimized |
| E7018 | Structural steel, low-hydrogen, code work | Smooth, low spatter, strong bead | All positions | Optimized |

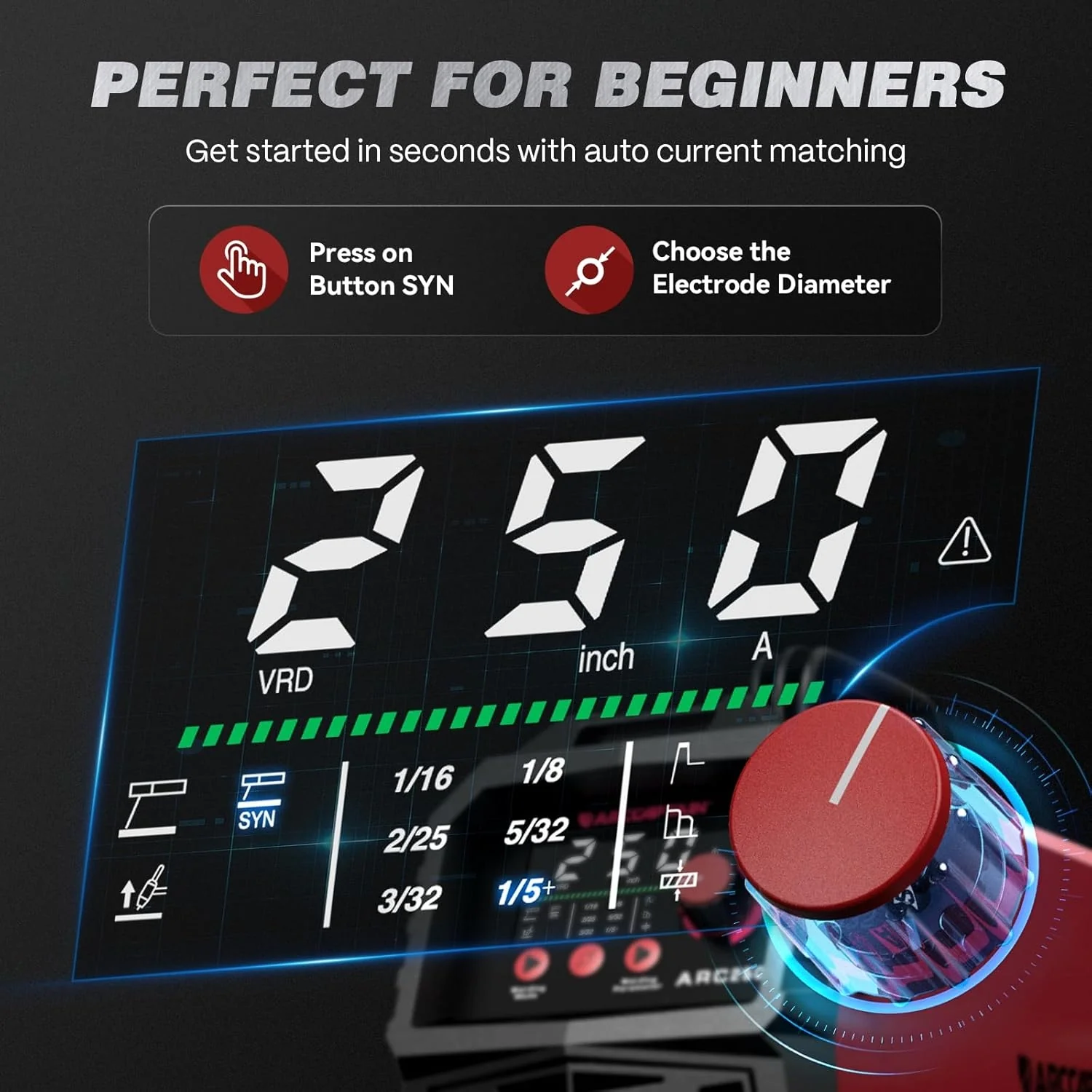

Select rod diameter or plate thickness — the machine sets parameters automatically. Override manually whenever you need full control.
SYN calculates and sets the correct current and voltage automatically. No burned rods, no porosity. Cuts setup time between rod changes on repetitive joints.

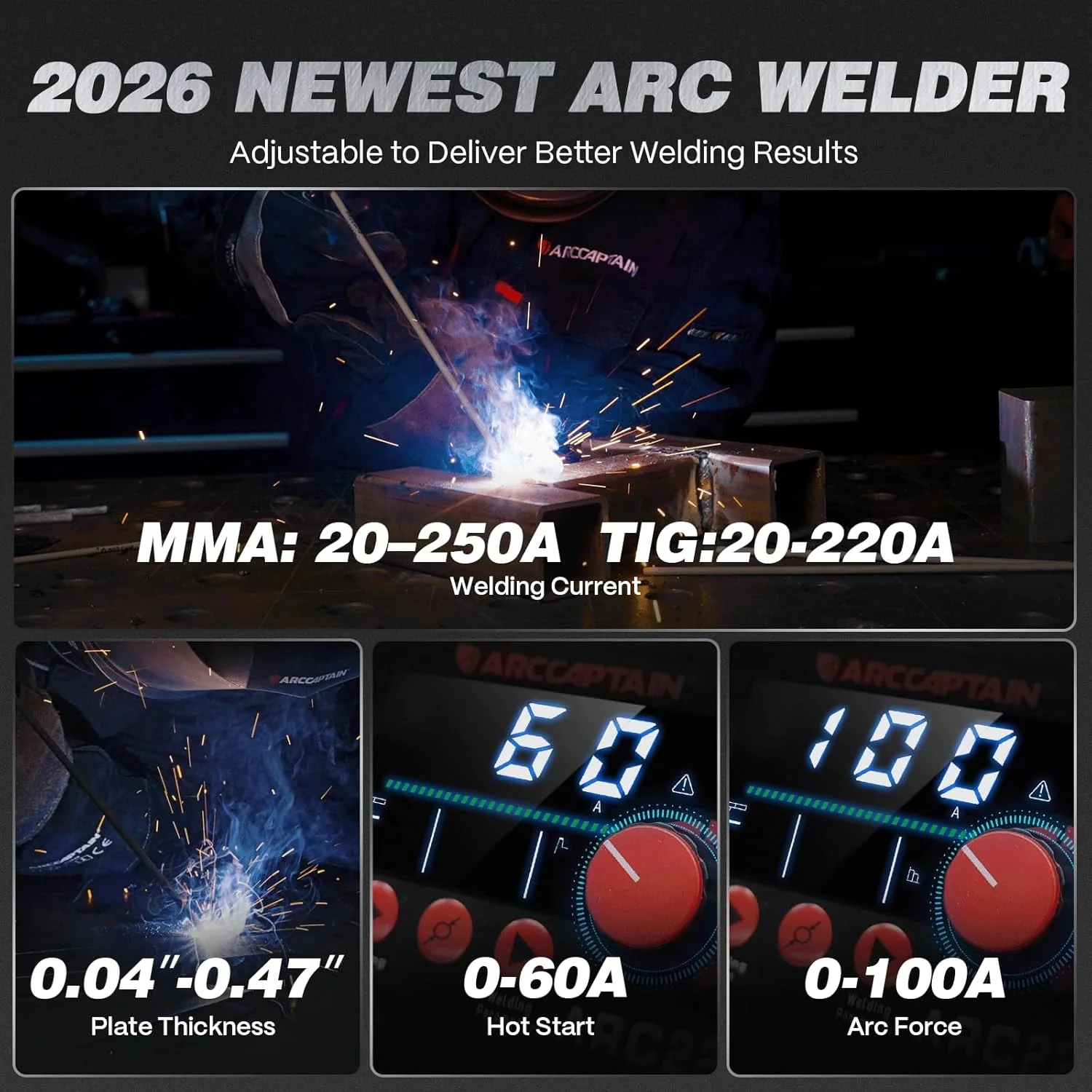

Complete control from 20–250A in fine increments. Dial a soft arc for thin sheet metal or an aggressive arc for heavy plate — at a glance, without lifting your helmet.
| Feature | Standard Welder | This Welder |
|---|---|---|
| 250A true rated output | Varies | Yes — 20–250A |
| 230V single-phase input | Varies | Yes — standard US |
| 60% duty cycle at full output | — | Yes — production rated |
| E6011 cellulosic rod support | Varies | Yes — optimized |
| Welds 2–16mm full steel range | Partial | Yes — full range |
| SYN auto parameter matching | — | Yes — rod + thickness |
| IGBT inverter + MCU control | Varies | Yes — standard |
| Full protection OC/OV/OT/OL | — | Yes — built in |

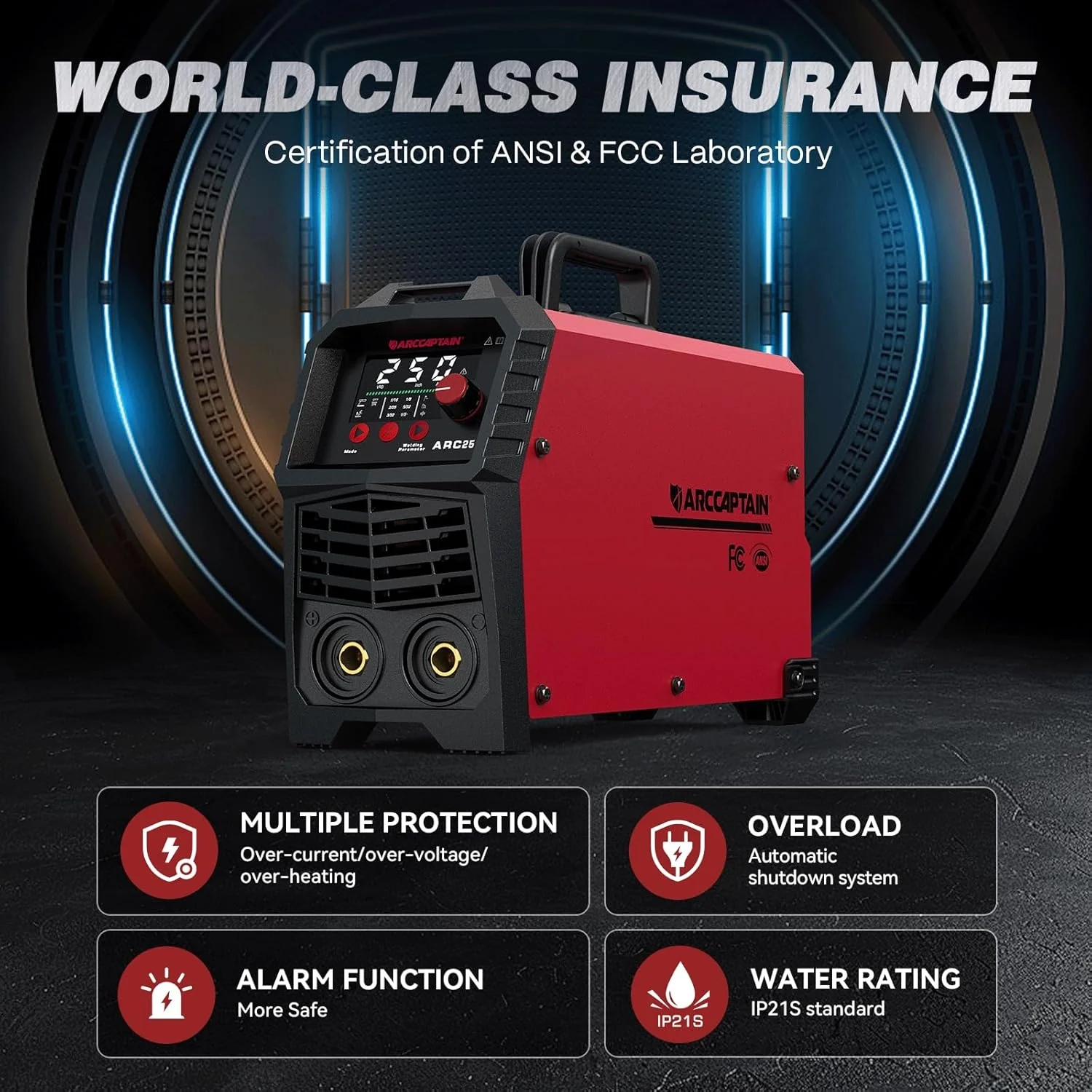

Four independent protection systems run continuously — so you focus on the weld, not the machine.
- Over-current protection — shuts output if current exceeds safe operating limits
- Over-voltage protection — guards internal components from input voltage spikes
- Over-heat protection — thermal cutout with automatic cooling fan prevents heat damage
- Overload protection — prevents sustained operation beyond the machine's rated capacity
E6011 cellulosic rod support. 60% duty cycle at full output. 1/16"–5/8" steel capacity. Pipeline, overhead, automotive, construction — one machine, every job.
